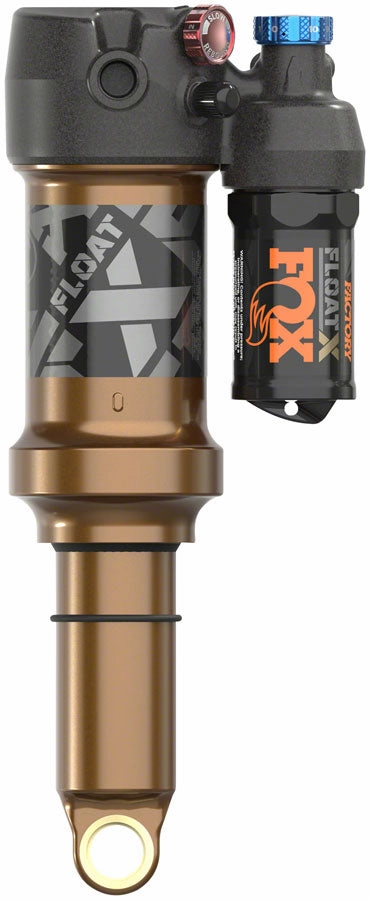

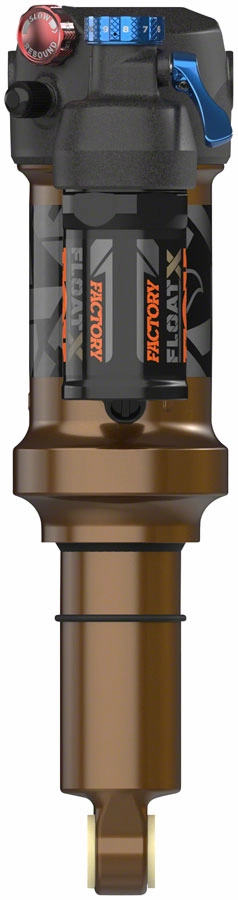

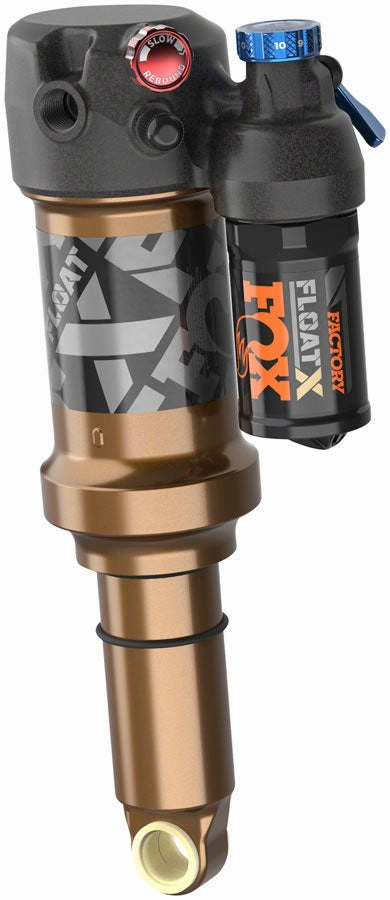

Factory says it all – feature-packed and designed to exceed the demands of Factory-level riders, but ready for everyone.

• Kashima Coat
• All-new chassis and damper
• High-flow main piston, air seal package
• Volume spacers with smaller increments and MCU bottom out bumper
• Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
• Independent firm mode circuit – Clockable 2 position adjuster, Increased rebound adjuster range (over DPX2)
• Optimized reservoir lengths per shock size
• Hydraulic top out feature, Reduced damper noise
• Bearing hardware compatible both sides, Air valve location offers improved frame fitment and pump access

Specifications:

• External Adjustments: Low Speed Compression Damping
• External Adjustments: Rebound Damping
• Metric: Yes
• Positive Spring: Air
• Eyelet Diameter (mm): Trunnion, 12.7
• Eye to eye length (mm): 185
• Lockout Switch: Shock Mounted Switch
• Stroke (mm): 55
