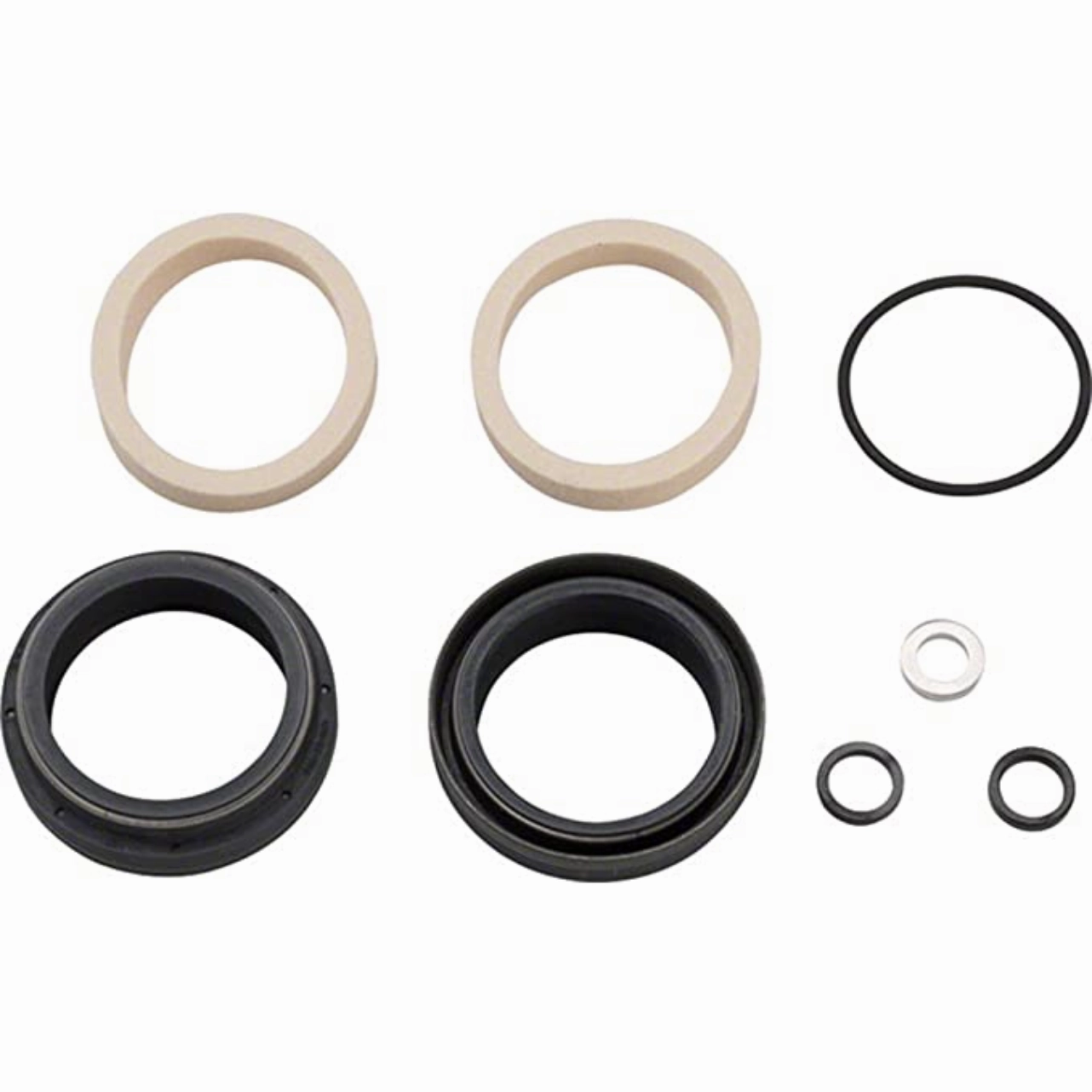

This kit is for a 2016-2021 32mm/34mm Fork Dust Wiper Replacement.

REQUIRED PARTS:

• 025-03-010 Oil: AM, FOX Bath Oil [32 oz.], 20 WT Gold
• 803-00-944 Kit: Dust Wiper, Forx, 32mm, Low Friction, No Flange
• 803-00-945 Kit: Dust Wiper, Forx, 34mm, Low Friction, No Flange
• Required Tools
• 398-00-681 2002-017 32 Damper-side and ALL 32-34-36-40 Spring-side Removal Tool
• 398-00-682 2005-017 34-36-40 Damper-side Removal Tool
• 398-00-770 Tooling: Guided Fork Seal Driver, One Piece Seal/Wiper, 32
• 398-00-771 Tooling: Guided Fork Seal Driver, One Piece Seal/Wiper, 34
• Supplies Needed
• 10mm Socket
• 15mm Socket
• 2mm Hex Wrench
• Mallet
• Ratchet
• Shock pump
• Torque Wrench
• Wooden or Plastic Dowel 1" (25.4mm)
• For exact instructions visit FOX's website at
