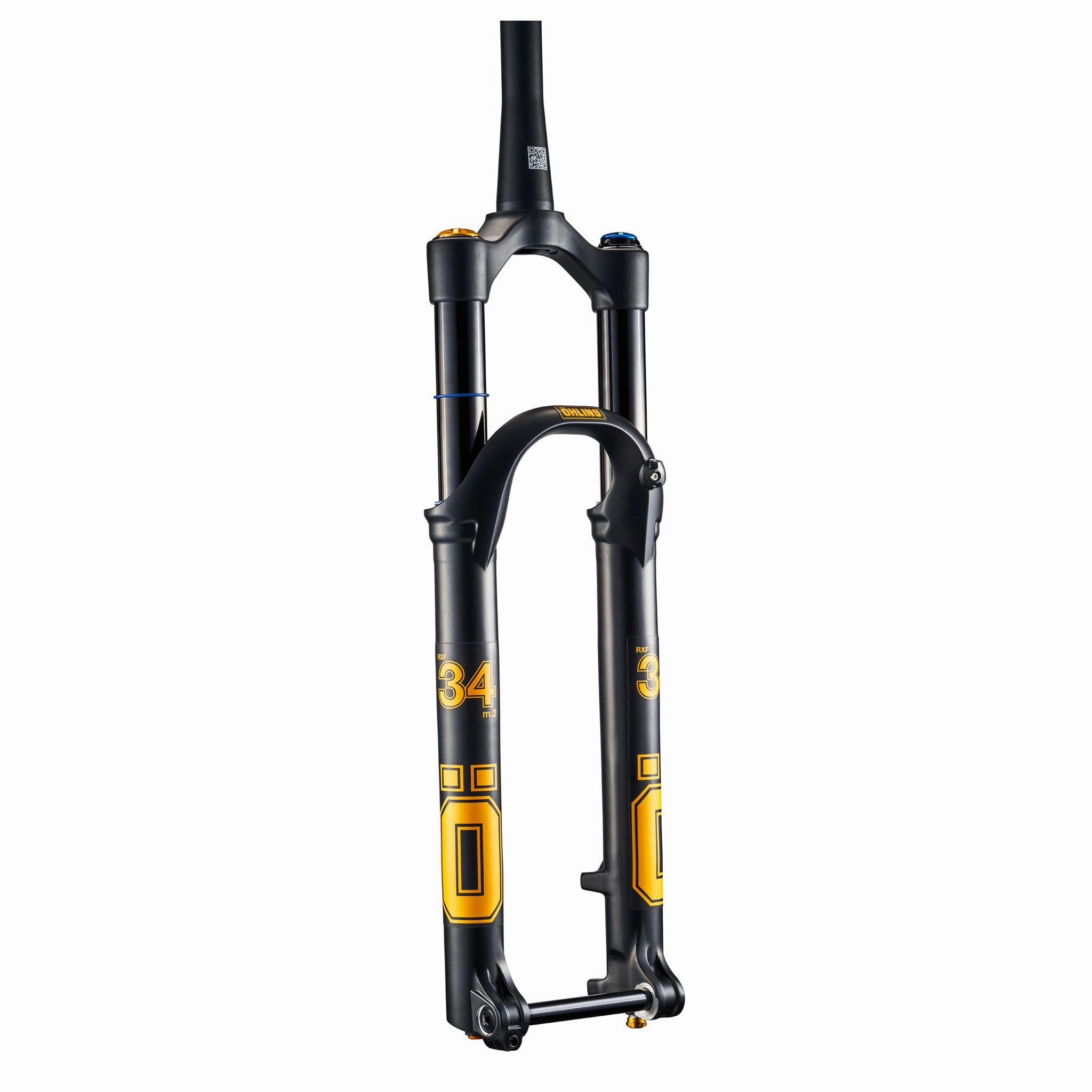

Short travel trail/downcountry fork with 34mm stanchions
OTX18 damper that is 27% lighter and optimized for faster and more fluid trail riding than the TTX18 damper
15 clicks of low speed compression and rebound adjustment
3 clicks of high-speed compression adjustment, climb mode in 4th position
Air spring has a positive and self balancing negative chamber and it can be tuned with a new spacer system
74mm post mount disc brake mount, 160mm to 203mm max rotor usage
Boost 15x110mm thru-axle, floating axle to decrease friction
Max tire size: 29 x 2.6 inch
E-Bike approved| model | RXF34 M.2 Air |
| wheel size | 29"/27.5" |
| steerer (stem/race) | tapered (28.6/40mm) |
| offset | 44mm |
| travel | 130mm |
| spring type | air |
| brake mount | disc only (PM-160) |
| dropout | 15x110mm Boost |
| weight | 1698g |
| color | black |
