Our stock crankset provides solid quality and value with the ability to choose crank arm color, crank arm length and chainring size. You can also add a bottom bracket, chain, freewheel and cog to your order

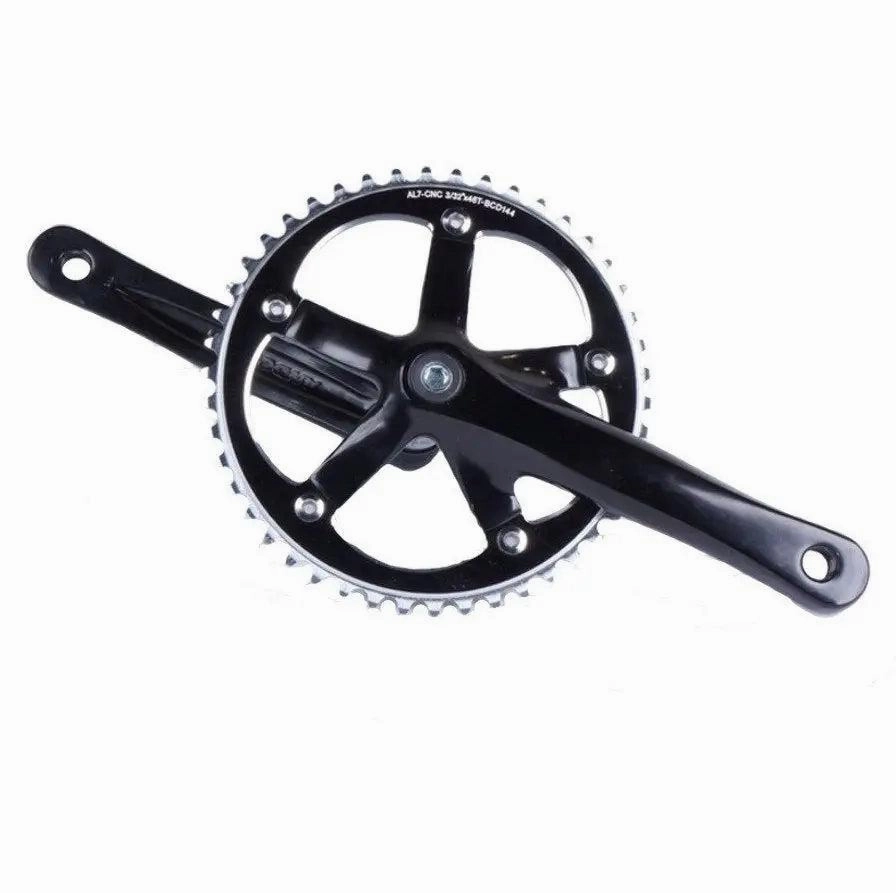

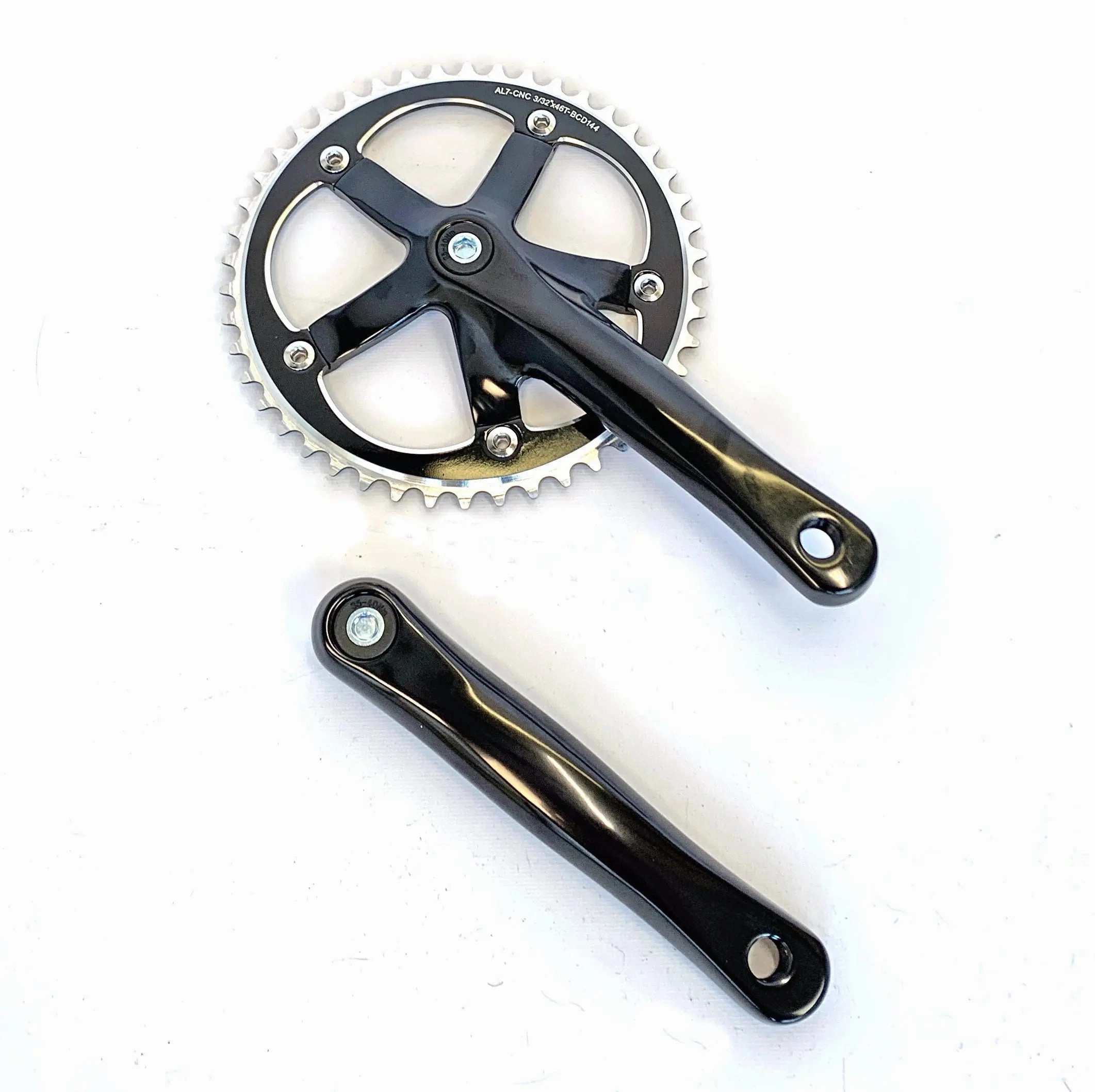

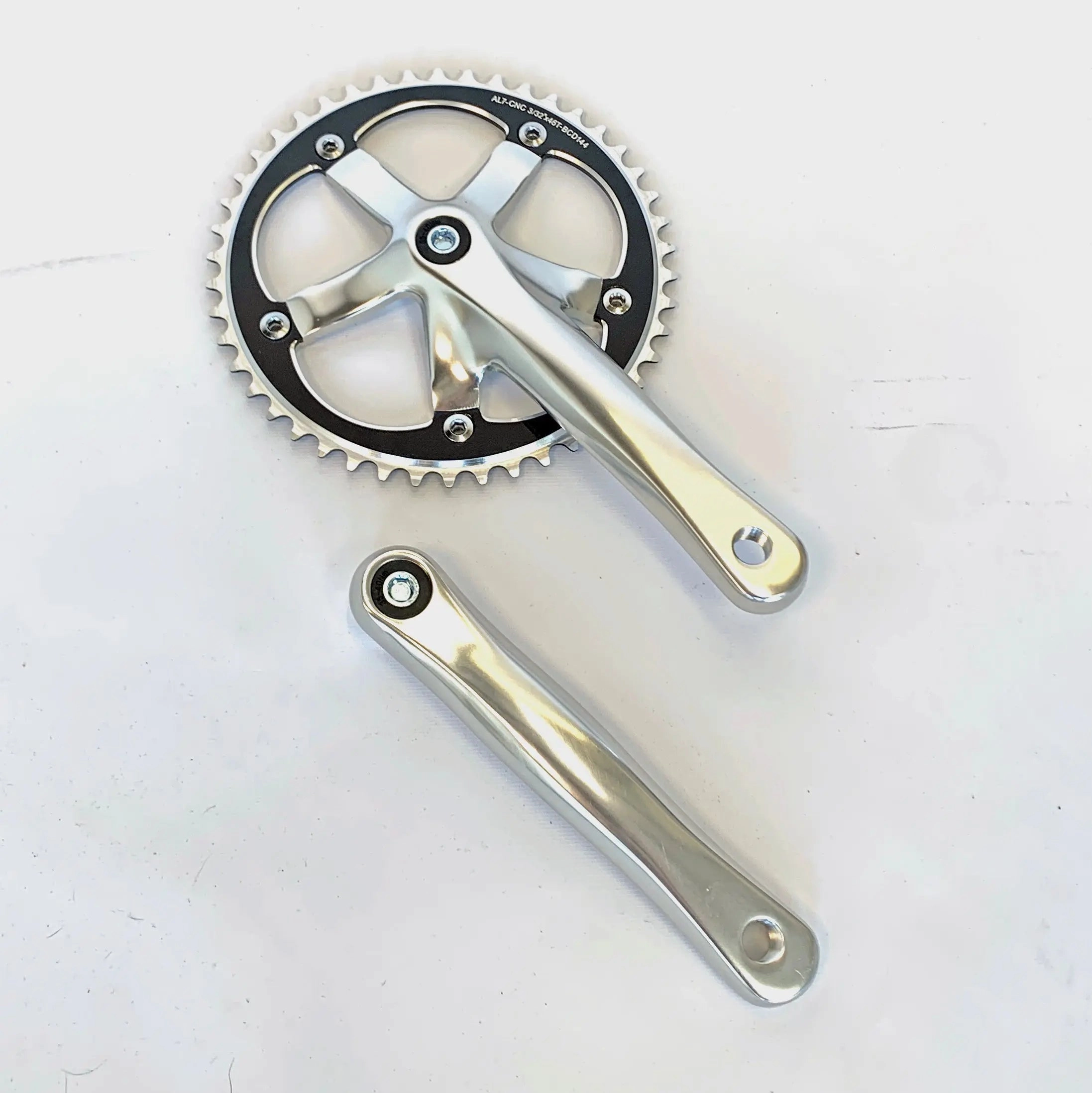

Based on the Andel RS series crankset, it features cold-forged 170mm alloy crank arms and a 3/32" 7075 aluminum alloy chainring. Like all of our components, this crankset is free of logos - just a clean look.
For bottom brackets, you can use a JIS square taper in a 107mm or 110mm spindle length and get the same 42mm chainline. Both of them have the same drive-side spindle length with variation on the non-drive side only (by /- 2mm in length from the drive side). It is just one of those quirks in the cycling industry.
Specs
- Chainring BCD: 144
- Chainring Teeth: As needed
- Drivetrain Speeds: Single Speed 3/32"
- Crank Length (mm): 165mm or 170mm
- BB: Not included. 107mm or 110mm JIS square taper. See note above on length.
- Includes chairning bolts and crankarm fixing bolts
- Weight: 713g
- Chainline: 42mm
Notes
Wabi Compatibility: This crankset is compatible with all of our frames.
Recommended Tools
- 8mm axle wrench (install and removal)
- (removal)
